Lori Automatic UV Laser Marking Coding Machine for Small Acrylic Glass and Non-metal Marking

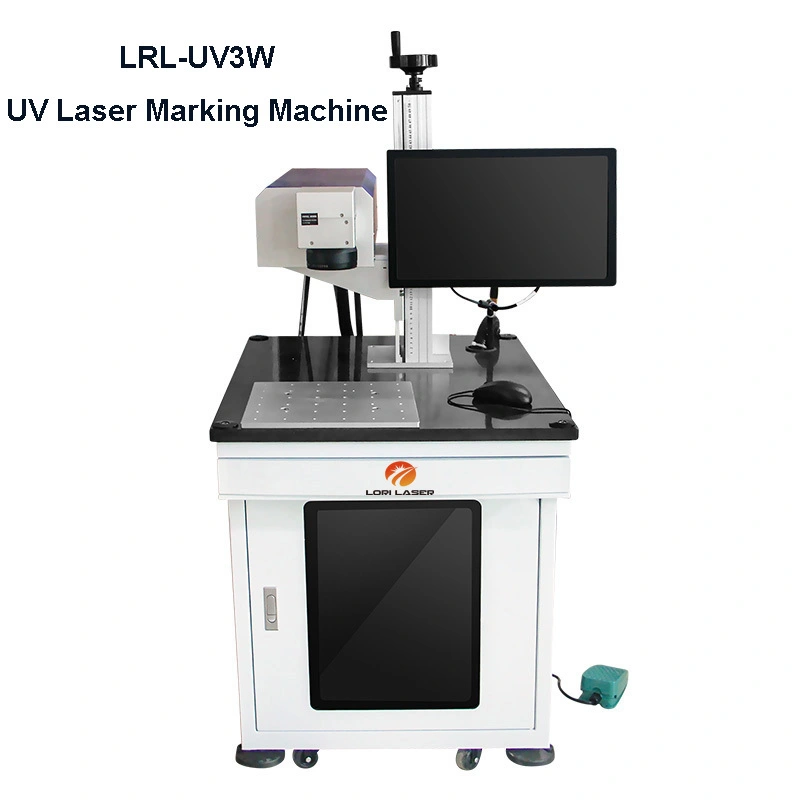

- LRL-UV3W UV Laser Marking Machine
- The laser coding machine can according to any pattern on any material accurate and fast marking, to meet the bulk production processing.
- High operability. Control system operation is easy to learn, good compatibility, processing flexibility, any shape can be engraved.
- Marking pattern is clear, can be a variety of metal, non-metallic materials for processing. Especially for high hardness, high melting point, brittle materials for marking more advantageous.
- This automatic laser marking machine has a wide range of uses and can be applied to most industrial enterprises for marking PVC, plastics, leather, ceramics and so on.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine parts
machine information
- The high energy molecules of UV photons directly detach the molecules on top of the material, thus marking it. As this way of working does not produce heat, the processing effect is good, suitable for a wide range of products.
- The Uv laser coding machine production process is finely controlled to ensure the consistency of production quality.
- Short start-up time and narrow light pulse.
- High peak power, wide range of repetition frequency.
- No light leakage from the laser in case of laser shutdown.
- The static UV laser marking machine is desktop integrated cabinet design, saving space, and easy to move and adjust the position
machine Parameters
| Machine Model | LRL-UV3W UV Laser Marking Machine | Laser power | 3W-10W |
| Beam divergence angle | <1.2mrad | Print speed | <10000mm/s |
| Print depth | <0.4mm | Machine weight | 80KG |
| Pulse width | <20ns | Pulse stability | <3% |
| Power Stability | <5% | Laser wavelength | 355mm |
| Beam quality | M2<1.2 | Range | 110-300m |
| Degree of polarization | >100:1 | Repeatability | ±0.002 |
| Graphic Type | BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF | ||
machine dtails
Low power consumption UV laser machine
Adopting good quality light source, good spot quality, uniform optical power density, lower damage to the surface of the object, suitable for marking of high-precision products.
Galvanometer scanner
The use of galvanometer scanner reduces the delay and improves the marking speed.The use of digital galvanometer scanner almost no temperature drift and has high speed.
Liquid crystal display
Liquid crystal display, good resolution.Computer interface is easy to operate. Fine marking.
Control panel
Power switch, control switch, laser key start switch, USB interface.
Lifting shaft
Accurate positioning with precise scale to achieve the precise distance for the desired effect.Convenient and easy to operate.
sample pictures
Wide range of application, can carve plastic, glass, leaves, PVC, QR code and so on
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
