5 Axis Vertical CNC Machine machining Center for Machining Metal Castings

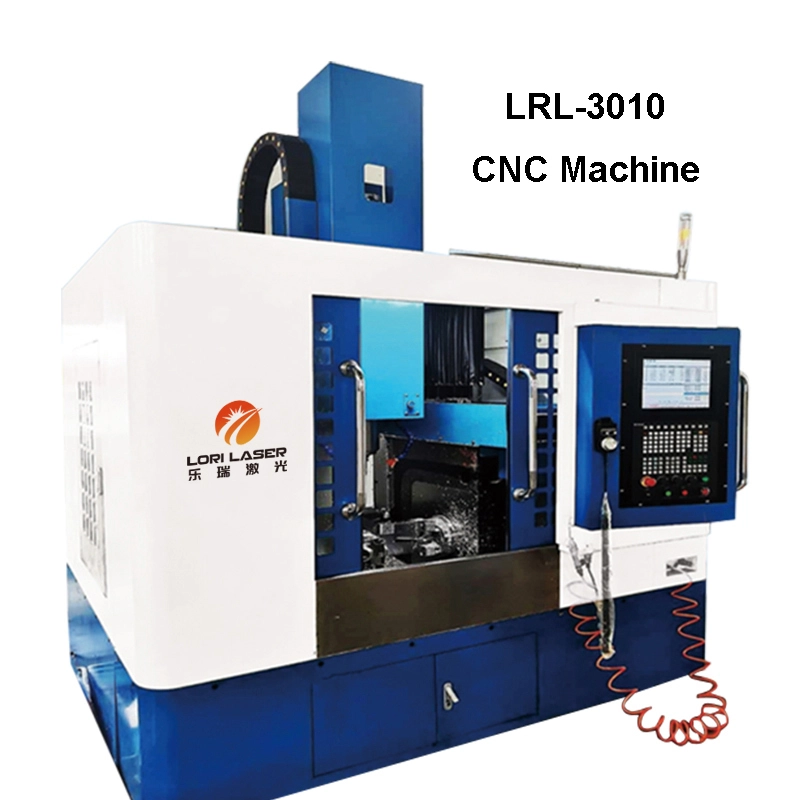

- LRL-3010 5 Axis CNC Machining Center
- The 5 axis CNC machine is structure and high-speed spindle, resulting in fast cutting speeds, high-precision transmissioncomponents, to achieve high-precision machining of the workpiece through the intelligent control system, cooling system, lubrication system, recycling system, presenting a flexible, efficient and high-quality machining.
- The vertical CNC machine uses RTCP numerical control system human-machine interface interactivity is good, can realize convenient operation, can be customized special function module powerful, with drilling, milling and tapping function, 3D tool compensation function.
- Safe, reliable and fast machining. Fully enclosed guarding design for improved safety.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Machine Parameters
| Item | Sub-item | Unit | LRL-3010 |
| Machine Weight |
Kg | 4000 | |
| Machine Size | mm | 2500*2100*3000 | |
| Worktable | Worktable Size | mm | 300 |
| Worktable Load | kg | 80 | |
| Table Travel | X Axis | mm | 500 |
| Y Axis | mm | 600 | |
| Z Axis | mm | 350 | |
| A Axis | ° | ±180 | |
| C Axis | ° | N*360 | |
| Spindle | Spindle Taper | BT40 | |
| Rated Spindle Speed |
9000 | ||
| Max Spindle Speed | r/min | 18000 | |
| Spindel Motor Power | KW | 7.5 | |
| Tool | Tool Magazine Capacity | 14 | |
| Time of Tool Change | s | 10 | |
| Positioning Accuracy | X Axis/ Y Axis/ Z Axis | mm | 0.010/ 0.010/ 0.010 |
| A Axis/C Axis | 14''/ 14'' | ||
| Repeatable Positioning Accuracy | X Axis/ Y Axis/ Z Axis | mm | 0.006/ 0.006/ 0.006 |
| A Axis/C Axis | 8''/ 8'' | ||
sample pictures
Widely used in automobile motorcycle, casting processing, electronic medical, jewelry and so on.
Earphone
Electronic Accessories
Hydraulic Fitting
Moto Wheel Hub
Ring
Frequently Asked Questions
1
What is your minimum order quantity and warranty?
Moq is one set, and warranty is one year.
2
How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you .
3
What's the payment terms ?
T/T, L/C /Paypal
