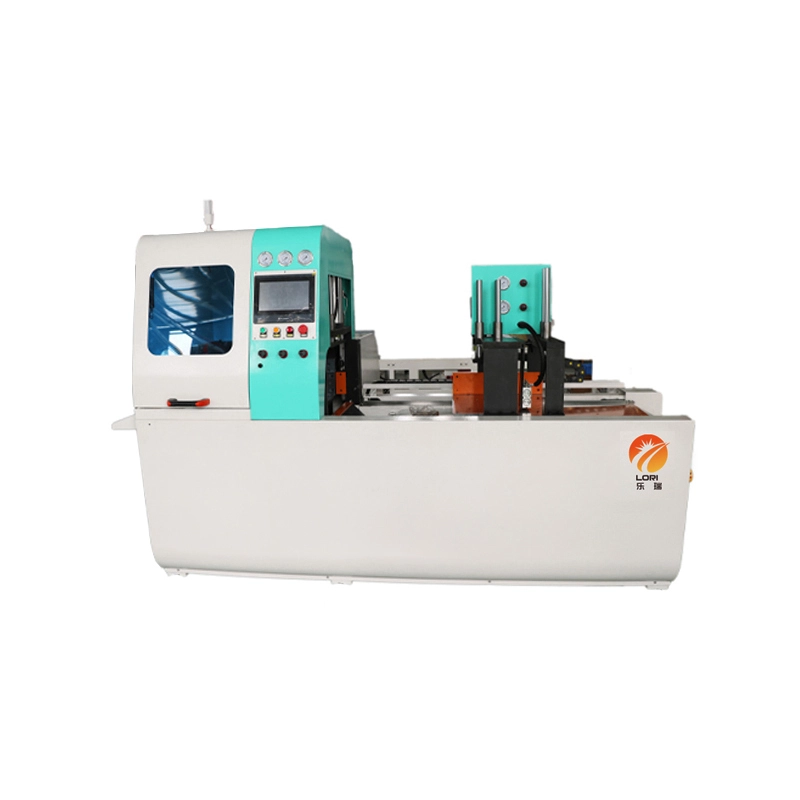

Lori's 600 CNC Fully Automatic Saw Cutting Aluminium Machines
Model 600:
Ø The aluminum saw cutting machine is a split-type CNC automatic saw designed with a stable and efficient "rear-to-front" cutting method.
Ø The automatic saw cutting machines adopt a direct-connection design, where the motor is directly connected to the saw blade, eliminating the need for belt replacement and reducing machine vibration and tool swing.
Ø The CNC fully automatic cutting machine is suitable for cutting and blanking various curtain wall materials, door and window profiles, radiator profiles, industrial profiles, and aluminum templates.
Ø Hard alloy saw blades and linear guides are selected to ensure minimal machine vibration during cutting and a smooth surface finish on the cut profiles.
Ø Controlled by a PLC bus system with a touch screen display, operators input processing dimensions on the touch screen, and the CNC system automatically feeds material, advances the blade for cutting, uses servo motors, and achieves high processing accuracy.
Technical Specifications
Control Mode: NC Bus Control
Main Motor Power: 15KW
Single Feed Length: 1000mm
Scrap Length: 30 mm～50 mm
Main Motor Speed: 1000～3000rpm
Saw Blade Size: Ф455x30x80T (Saw blades with diameters below 600 can be installed)
Cutting Profile Width: 500mm
Cutting Profile Height: 200mm
Positioning Speed of Moving Head: 18m/min
Rated Voltage: 380V/50Hz
Rated Air Pressure: 0.6～0.8Mpa
Scrap Control: 30mm
Machine Dimensions (L×W×H): 2670×1800×1800mm
Net Weight: 1800KG
Equipment Accessories
|
Accessory |
Specification&Model |
Main Parameters |
Manufacturer |
|
Saw Blade |
Ø455x30x80T |
Outer Diameter: 455mm |
Hongfeng |
|
Touch Screen |
10 Inches |
|
Kunlun Tongtai |
|
PLC Controller |
1614M |
|
Xinjie Bus |
|
Feed Servo Motor |
1KW |
1KW |
Han's Laser |
|
Material Feeding Servo Motor |
1KW |
1KW |
Han's Laser |
|
Precision Reducer |
|
|
Wanxin Precision |
|
Solenoid Valve |
2-Position 5-Way |
4V210-08 |
AirTAC (Taiwan) |
|
AC Contactor |
1C1D09 |
Schneider |
|
|
Thermal Overload Relay |
CB206 |
Schneider |
|
|
Relay |
RY4S-U 24V |
24V 5A |
Schneider |
|
Sawing Motor |
Spindle Motor |
15kw |
Hongfeng |
|
Lead Screw |
3220 |
3220 |
TBI (Taiwan) |
|
Linear Guide |
30 |
30 |
Hiwin/AirTAC (Taiwan) |
|
Tool Cooling |
Micro-Cooling |
Micro-Cooling |
Hongfeng |
Processing capacity
This machine is suitable for cutting various curtain wall materials, door and window profiles, heat sink profiles, industrial profiles, and aluminum templates.
Standard Configuration
1 × Annealed and aged 609 series machine integral base
1 × Material support frame 3000mm
1 × Air filtration system
4 × Large-range vertical material pressing devices
4 × Horizontal material pressing devices
1 × Mist cooling system
1 × Enclosed protective cover
1 × Ø455x30x80T alloy saw blade
1 × Operating manual
1 × Chip collection system 4KW
1 × Saw blade installation wrench
