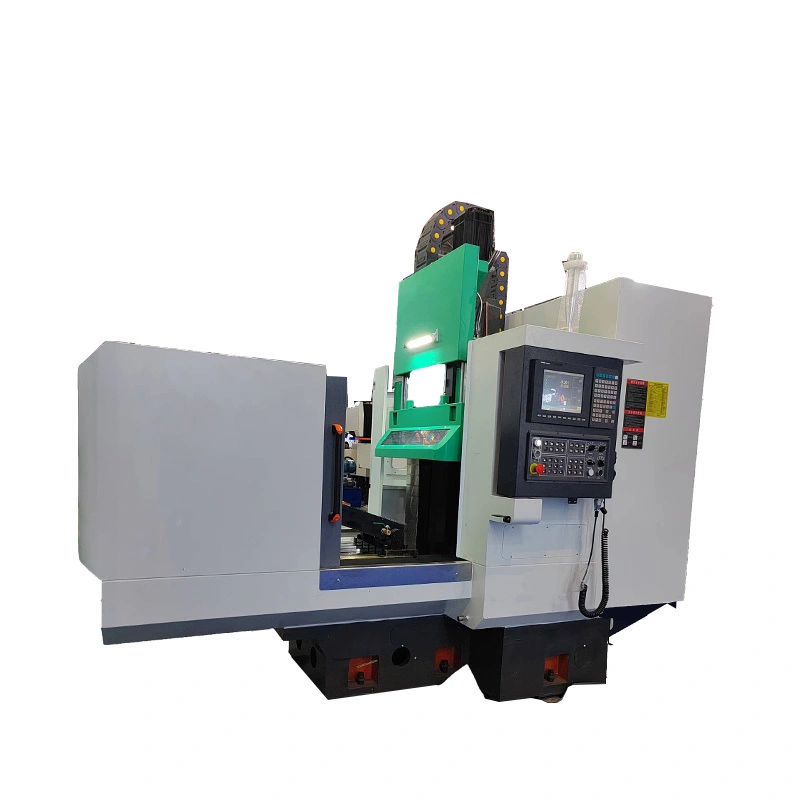

Lori High efficiency CNC Skiving Machine for Heat Sink Fin
- The high-efficiency CNC machine skiving heat sink fin has larger and smoother section for increased heat dissipation;
- The heat sink fin skiving machine heat sink fin is smaller spacing, can accommodate more heat sink, provide greater thermal conductivity;
- High precision, fast efficiency, the skiving equipment can save materials to a greater extent
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Related Parameters
| Machine NO. | LRL-CC650 (Vertical) | Y/Z rail specifications | RGW35HC/RGW45HC |
| Workbench area | 700×500 | Skiving knife bottom plane to work surface | 100-600 |
| Maximum load of workbench approx.(KG) | 600 | Maximum width of skiving fin (mm) | Aluminum 300(piece height 80); Copper 180(piece height 40) |
| T-slot (size × number of slots × spacing) | 18/5/90 | Maximum fin thickness (mm) | Aluminum 1.5, Copper 1 |
| (workbench movement) X axis travel | / | Minimum fin thickness (mm) | 0.08 |
| (skiving knife slide move) Y-axis travel | 600 | Maximum step length of skiving fin (mm) | 10 |
| (skiving knife moving up and down) Z-axis travel | 500 | Minimum step length of skiving fin (mm) | 1:2(Thickness: step length) |
| Y axis fast moving speed | 20m/min | Maximum skiving fin height (mm) | Aluminum 80, Copper 50 |
| Z axis fast moving speed | 10m/min | Y(X)/Z servo motor Power (KW) | 7.5/5.5 |
| Y/Z screw specifications | DFS5010/DFS4010 | Maximum shape of the machine (length × width × height) | 2500×2000×2300 |
| Machine weight approx.(T) | 4.5 |
