Intelligent Automatic Laser Cutting and Engraving Machine for Non-metal Materials

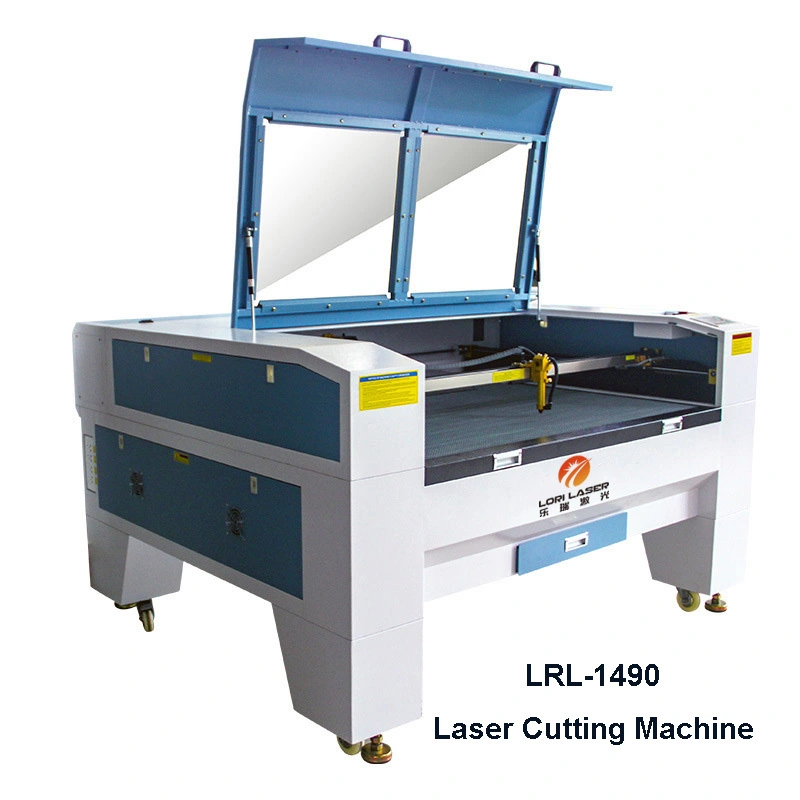

- LRL-1490 Automatic Laser Cutting Machine
- The single head laser machine uses special grade fiber laser cutting head with fine spot.It can cut accurately and quickly according to any pattern to meet the processing of mass production of large goods.
- High operability. Control system operation is easy to learn. Good compatibility, processing flexibility. Any angle and any shape can be cutting.
- Neat and beautiful cutting. Cutting a variety of materials are flat, no burrs, no drawing.
- Low cost, low energy consumption, high photoelectricity conversion rate.
- High cutting power, stable cutting process, low noise during operation.
- This laser cutting and engraving machine has a wide range of uses, which can be used for leather, wood board, acrylic and other non-metal materials cutting and engraving.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine information
- Lighghtweight aluminum motion system, good rigidity and good dynamic performance.The coler is blue and white.
- The entire laser equipment use of high-quality sheet metal, thick body, and long time use without deformation.
- Fine control of the production process to ensure the consistency of production quality.
- Large window design, you can view the work situation at any time.Processing track and coordinate points, processing progress real-time display.
- Work time preview / power outage continue carving function, and accurate to the level of milliseconds.
- The intelligent automatic laser cutting machine has different specifications of 60W-150W. 60W-100W lazer machine can engrave or cut, and 130W and above the lazer machine mainly for cutting.
- The intelligent laser cutting machine only need to input instructions, which can be fully automatic cutting and engraving, so one people can operate more than one machine, saving costs.
machine parts
Related Parameters
| Machine Model | LRL-1490 Laser Cutting Machine | Laser power | 60W-150W |
| Cutting Speed | 0-36000mm/s | Graphic type | BMP, GIF, JPEG |
| Air speed | 1000mm/s | Positional accuracy | ±0.1mm |
| Smaller line width | Letter 1*1mm | Machine power | <3000W |
| Machine weight | 500KG | Working voltage | AC110/220/240V |
| Machine operating temperature | 5-95% (no condensation) | Machine operating temperature | 0-45% ° C |
| Transmission mode | Internal and external ball high-speed guideway | Cooling method | Water cooling |
| Cutting range | 1490*900mm | Control speed | DSP control system |
| Cutting thickness | 0-30mm | Machine size | 1980*1480*1120mm |
machine details
Air pump
Blow the smoke and dust generated during cutting to the exhaust area under the machine to facilitate the discharge of smoke and dust.
Laser Tube
Adopting glass fiber reinforced plastic tube with nano-catalytic technology for more stable performance.
Laser head
Choose six balanced linear guide, with high hardness, corrosion resistance, superior vertical performance.The laser head is smooth, high speed, no jitter, stable cutting process.
Blower Shell
Blow shell is made of aluminum, good heat dissipation performance fire and corrosion resistance, better adsorption of materials, so that the material is flat to suck away the smoke.
Constant temperature chiller
Brand water tank cooling system water flow cooling stability, long service life, can better protect the laser tube from damage.
sample pictures
Widely used in various industries, cutting fabric, clothes, shoes, leather, acrylic, PVC, wood, paper, EVA sponge and so on. Precision cutting, flat surface.
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
