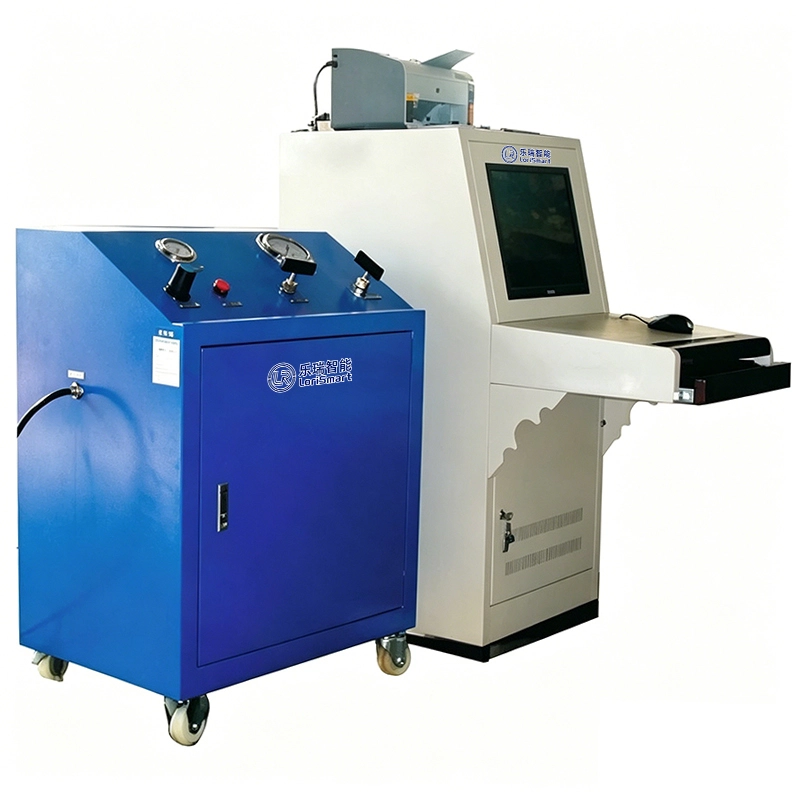

High-Pressure Gas Leak Testing Equipment
Key Features & Advantages
Lori gas leakage testing system has been meticulously designed to be suitable for demanding industrial environments. This system features a robust pneumatic gas booster pump, providing inherent safety for high-pressure applications.
machine Parameters
| Model | LRS-DGT25 / LRS-DGT40 / LRS-DGT60 / LRS-DGT100 |
| Driven Air Pressure | 0.3 ~ 0.8 MPa (3 ~ 8 bar) |
| Gas Inlet Pressure Range | 0.1 ~ 10 MPa (1 ~ 100 bar) |
| Max. Gas Outlet Pressure | 2 MPa ~ 80 MPa (20 ~ 800 bar) |
| Max. Flow (at 8 bar inlet) | 74 ~ 154 L/min (Model Dependent) |
| Driving Medium | Clean Compressed Air / Nitrogen |
| Gas Inlet Connection | Φ12 PU Hose Quick-Connection |
| Gas Outlet Connection | ZG1/4 Female Thread |
| System Cabinet Dim. (W x D x H) | 700 x 500 x 900 mm |
Two control modes, meeting various operational requirements
Choose the automation level that suits your workflow and budget. We offer the same reliable pneumatic platform, with the option of manual or fully automatic computer control.
1. Manual control mode
Suitable for simple, low-production or low budget application scenarios. The user-friendly panel integrates all manual valves and instruments. The operator adjusts the driving air pressure through the control valve and visually monitors the test pressure through high-precision analog or digital display instruments.
2. Computer Control Mode (Intelligent and Automation)
Suitable for high production, traceability and stringent testing procedures. This mode has achieved significant advancements in automation and data integrity:
- Real-time Monitoring: The test pressure is displayed in real time on the LCD screen.
- Automatic Data Recording: High-speed data acquisition, continuous capture of pressure values, capable of generating and printing pressure-time curves.
- Intelligent Alarm: If the test pressure drops below the set threshold during the pressure retention period, the system will automatically trigger an alarm.
- Powerful Software: Using industrial control configuration software, running on an industrial personal computer (IPC) with a PLC backbone, it enables easy programming of test sequences and complete report generation.
Why Choose Our Gas Leak Testing Equipment?
- Professional knowledge from professional manufacturers: As the source factory, we not only manufacture machines; we design solutions for you. We ensure that the equipment can meet the strict industry requirements.
- The uncompromising quality: Our highly efficient production plant uses world-class components to manufacture the highest quality, durable and high-performance leak detection equipment.
- Global Services and Support: We offer comprehensive documentation, easy installation instructions, and prompt after-sales support to ensure your operation proceeds smoothly at all times.
Need a custom solution? If the standard specifications don't cover your unique test object, pressure, or flow needs, please don't hesitate to contact us. Our engineering team is ready to design a tailor-made gas leak detection system for you.
