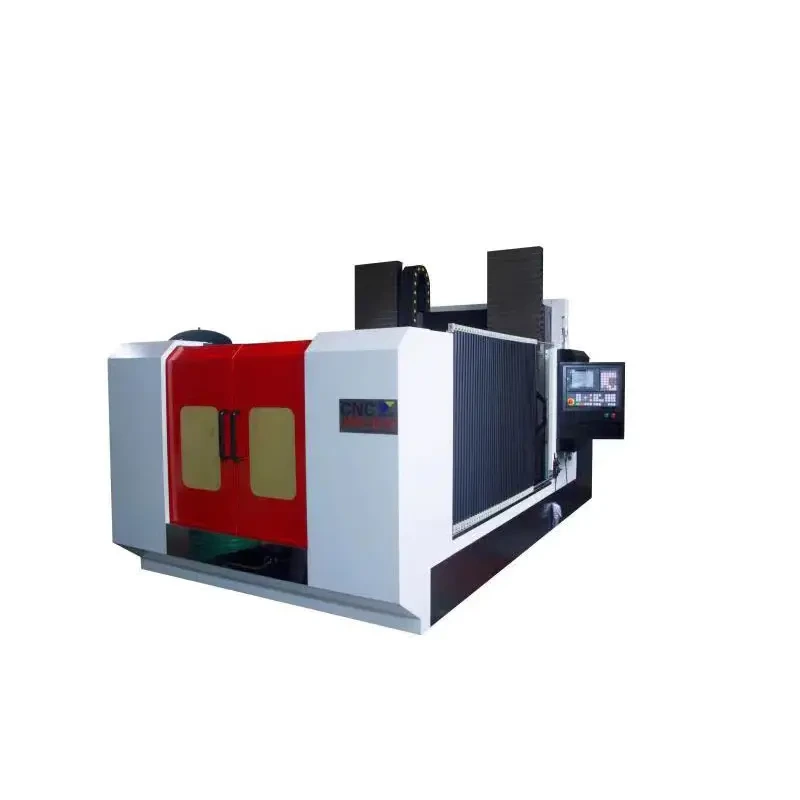

Heat Sink High Density Large Skived Fin Machine
- The travel of the large CNC machine is 3.5 meters, the width is 800mm, and the problem of tail material is completely solved.
- Efficient, intelligent, stable, easy to operate, wide range of applications
- Easy loading and unloading, can be directly connected with grinding machine, burr machine, cutting machine and other equipment to form a production line.
- Four kinds of aluminum fin materials can be cut simultaneously
- The spindle of large skived machine adopts Taiwan HIWIN. It has the characteristics of high rigidity and impact resistance.
- Easy to use. Parametric variable program, users only need to enter the parameters of the props and related process parameters to achieve processing, no programming.
- No hanging wheel mechanism, no mechanical indexing device, simple operation, the heat sink fin skiving machine can greatly reduce the machine preparation work.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Related Parameters
| Machine name | CNC skiving fin machine | Skiving fin maximum length | Copper 3500mm, Aluminum 3500m |
| Model No. | LRL-3580 | Skiving fin maximum width | Copper 300mm, Aluminum 800mm, When the heatsink width is 800 mm, the fin thickness should not exceed 1 mm |
| X axis travel | 3500 (mm) | Skiving fin maximum thickness | Copper 1 mm, Aluminum 2 mm, When the fin thickness is 2 mm,The maximum width of the heatsink shall not exceed 400 mm |
| Y axis travel | 500 (mm) | Z axis travel（work surface） | 220 (mm) |
| Skiving fin minimum thickness | 0.2 mm | Working desk size | 800×3600 (mm) |
| Skiving fin maximum step | 15 mm | X axis rapid movement | 8 meter/min |
| Skiving fin minimum step | 1 to 1（Fin Thickness vs. Step) | Z axis rapid movement | 8 meter/min |
| Skiving fin maximum height | Copper 60 ,Aluminum 140 mm | Vacuum pump power | 7.5 KW |
| Gas tank (included) | 1m³ | Machine total power | 18 KW ( Not include vacuum pump ) |
| 800mm skiving cutter | 2 cutters | Control System | Taiwan lN |
| Knife sharpener | One | 300mm skiving cutter | One cutter |
| X/Z axis rai | Taiwan HIWIN | X/Z axis screw | Taiwan HIWIN / Boter |
| Precision | Repeat positioning accuracy is less than 0.02mm | X/Z axis servo motor | ZONCN / VEICHI / Yaskawa |
| Dimensions | L9000 * W2500 * H2000 | Bearing | FAG |
| Overall weight (approx) | 14 tons |
