Double Head CCD Camera Laser Cutting Machine for Acrylic Leather and Fabric

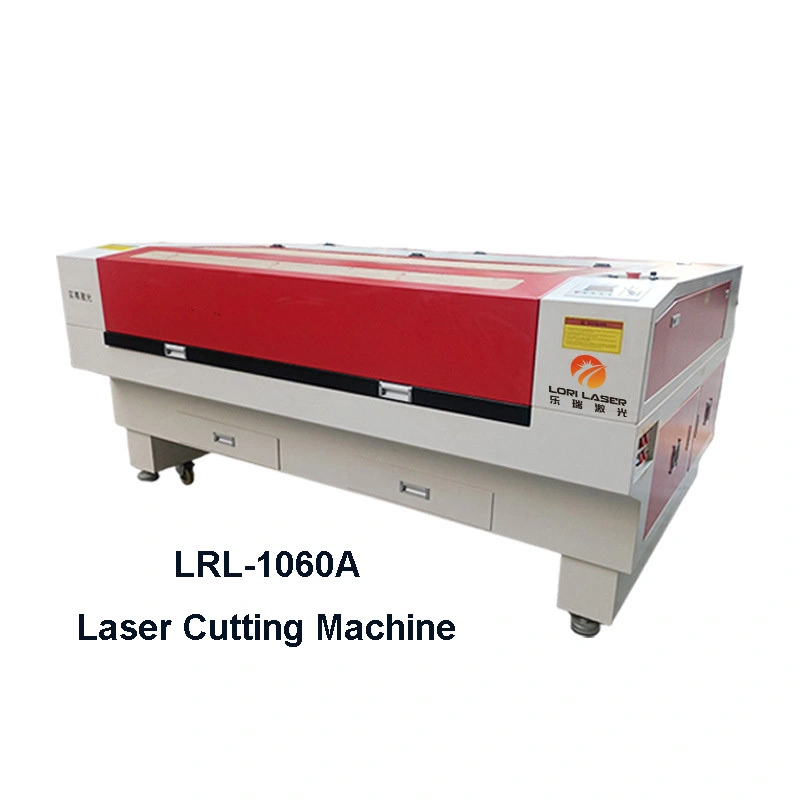

- LRL-1060A Laser Cutting Machine
- Precise cutting.the incision is smooth, no yellow, no raw edge, no need for secondary processing.
- Lightweight aluminum motion system, good rigidity, good dynamic performance.
- The fabric cutting machine adopts high quality sheet metal, thick body, 2 times heavier than the peer.
- Processing track and coordinate points, processing progress real-time display.
- The double head CCD laser cutting machine of time preview/power off to continue carving function is accurate to the millisecond level.
- Large window design allows you to view work at any time.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine Introduction
- Processing (cutting, punching holes, marking lines, etc.) can be completed in one go. High processing efficiency.
- Lori CCD camera laser cutting machine wire has been developed specifically for the automatic identification and cutting of a wide range of textile and leather labels, suitable for cutting well-defined, smaller labels.
- The CO2 laser cutting machine uses a vibrating knife, with the blade moving up and down, to cut soft and elastic materials with minimal deformation or wear.
- This laser cutting equipment uses a 40W CO2 laser tube with stable laser beam quality and output power, which helps to achieve better heat control while the machine is running.
machine parts
Related Parameters
| Machine Model | LRL-1610A Dual Head Laser Cutting Machine | Laser Tube | 40W CO2 laser tube |
| Support system | windows, MacOS | Graphic type | BMP,GIF,JPEG |
| Air speed | 1000m/s | Positional accuracy | ±0.1mm |
| Smaller line width | 1*1mm | Machine Power | 400W |
| Machine weight | 690KG | Working voltage | 200V, 50-60HZ |
| Connection method | USB | Working temperature | 0-45℃ |
| Transmission structure | Linear guide rack and pinion drive | Pen type | Mercury pen for leather |
| Cutting method | Vibrating knife cutting | Machine size | 820*550*300mm |
Machine Advantages
Air Pump
Cut the smoke produced when blowing to the machine under the air exhaust area to facilitate the discharge of smoke and dust.
Laser Tube
The laser tube is made of glass fiber reinforced plastic tube, which is stable in use, and the performance of nano-catalytic technology is more stable.
Laser Head
Laser head selection of imported six balanced linear guide with high hardness, corrosion resistance, superior vertical performance. The laser head is smooth, high speed, no jitter.
Blower Shell
Blower shell is made of aluminum, good heat dissipation performance fire and corrosion resistance, better adsorption material, so that the material is flat to suck away the smoke.
Constant Water Cooler
Brand water tank cooling system water cooling stability, long service life can better protect the CW-5200 laser tube from damage.
sample pictures
Widely used in various industries, cutting fabric, clothes, shoes, leather, acrylic, and so on. Precision cutting, flat surface.
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
