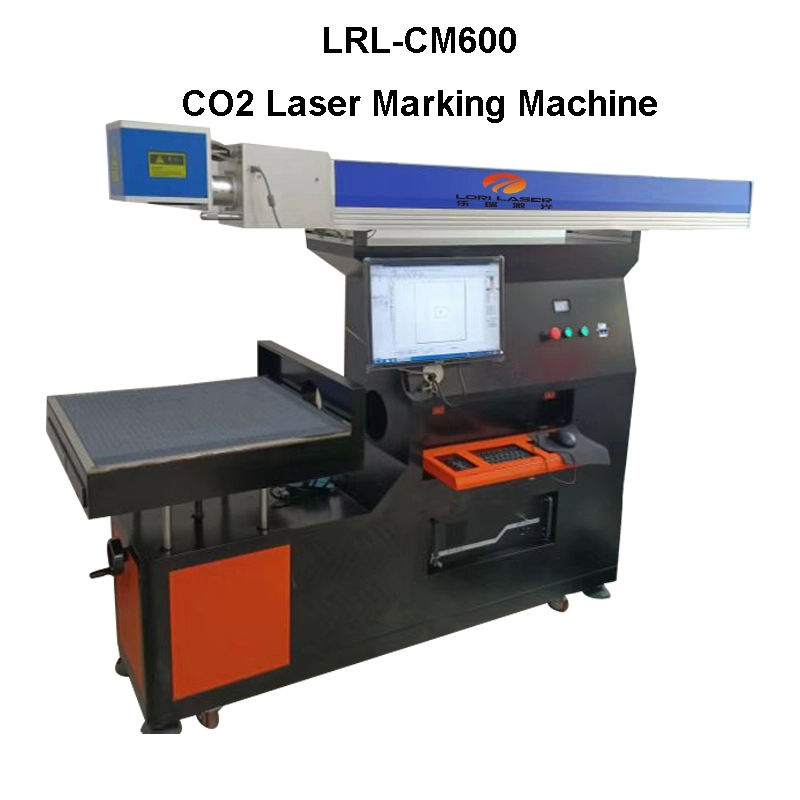

CO2 Metal RF tube Laser Marking Machine
- LRL-CM600 CO2 Laser Marking Machine
- The laser marking machines with RF metal tube can be processed on a variety of metals, marking speed, high precision.
- Focusing spot is small, marking fine engraving effect is clearly visible, smooth and flat effect is good.
- Lori laser marking equipment has software advantages, different from the market assembly machine, control software is our dozens of engineers independent team development and design, by the depth of the algorithm optimization, significantly improve production efficiency.
- Short start-up time, narrow light pulse
- High peak power, wide range of repetition frequency
- Ensure no light leakage when the laser is turned off.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine parts
machine Parameters
| Machine Model | LRL-CM600 (High-end version) | Laser power | 80-300w |
| Laser Type | Sealed C02 laser | Graphic type | BMP.GIF.JPEG.PCX |
| Positioning mode | Infrared ray | Cooling method | forced water cooling protection system |
| Power supply | AC220/50~60hz | Working temperature | 0~45°C |
| Machine weight | 240KG | Drive motor | stepping motor |
| Working humidity | 5%~95% non-condensing water | Focusing spot | 0.15mm |
| Reflector | II-VI lenses | Dynamic module | FEELTEK |
| Working range | 300mm~600mm | Marking mode | 3 axis dynamic focusing |
| Repeatability | ±0.002 | Machine size | 2180*704*1330mm |
machine charactoristics
1. High quality laser
The use of good quality light source and spot quality ,light power density uniformity, stable output optical power with no light leakage, anti-high reverse and other features.
2. Galvanometer scanner
The use of galvanometer scanner reduces the delay and improves the marking speed.The use of digital galvanometer scanner almost no temperature drift and has high speed.
3. Liquid crystal display
Liquid crystal display, good resolution.Computer interface is easy to operate. Fine marking.
4. Control panel
Power switch, control switch, laser key start switch, USB interface.
5. Lifting table
Accurate positioning with precise scale to achieve the precise distance for the desired effect.Convenient and easy to operate.
sample pictures
Wide range of uses, marking metal and non-metal items, engarving clear, smooth surface.
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
