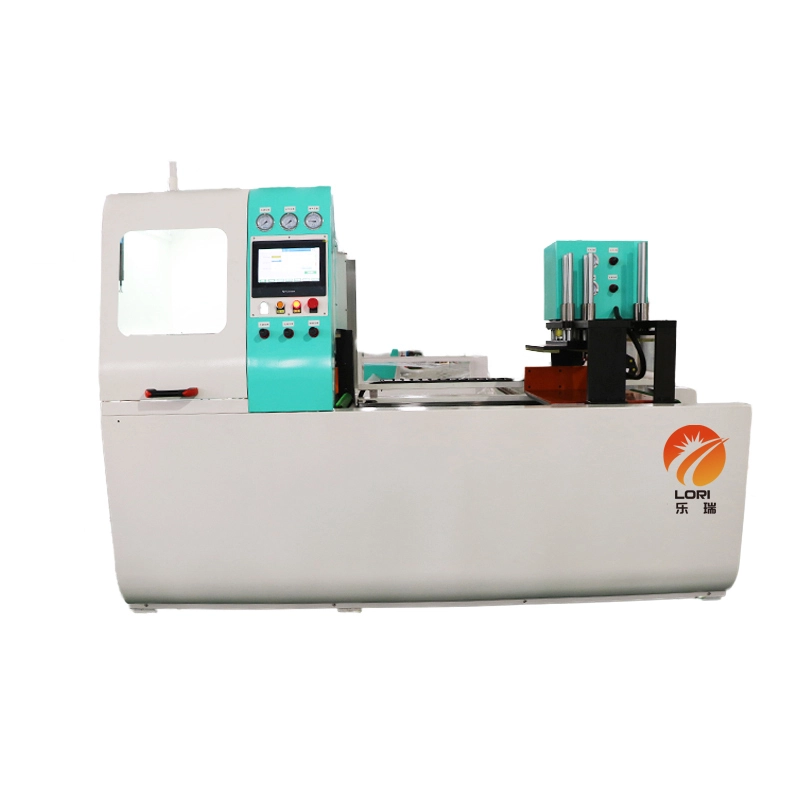

Lori's 550 CNC Automatic Sawing Aluminium Cutting Machine
Model 550:
Ø The aluminum cutting machine is a split-type CNC automatic saw designed with a stable and efficient "rear-to-front" cutting method.
ØThe CNC saw cutting machine adopts a direct-connection design, where the motor is directly connected to the saw blade, eliminating the need for belt replacement and reducing machine vibration and tool swing.
ØThe automatic cutting machine is suitable for cutting various curtain wall materials, door and window profiles, heat sink profiles, industrial profiles, and aluminum templates.
Ø Hard alloy saw blades and linear guides are selected to ensure minimal machine vibration during cutting and a smooth surface finish on the cut profiles.
Ø Controlled by a PLC bus system with a touch screen display, operators input processing dimensions on the touch screen, and the CNC system automatically feeds material, advances the blade for cutting, uses servo motors, and achieves high processing accuracy.
Technical Specifications
Control Mode ------------- Bus Servo System CNC
Main Motor Power --------- 7.5KW
Single Feed Length --------- 700mm
Main Motor Speed --------- 1000～3000rpm
Saw Blade Size ------------- Ф455×30X80T (Saw blades with diameters below 550 can be installed)
Maximum Cutting Profile Width ----- 350mm
Maximum Cutting Profile Height ----- 150mm
Moving Head Positioning Speed ----- 30 未标题-12-1 m/min
Rated Voltage -------------- 380V/50Hz
Rated Air Pressure -------------- 0.6～0.8Mpa
Machine Dimensions (L×W×H)---------- 2200×1650×1670mm
Net Weight ---------1400KG
Equipment Accessories
|
Accessory |
Specification&Model |
Main Parameters |
Manufacturer |
|
Saw Blade |
Ø455×30X100T |
Outer Diameter: 455mm |
Hongfeng |
|
Touch Screen |
10 Inches |
|
Kunlun Tongtai |
|
PLC Controller |
1614M |
|
Xinjie Bus |
|
Feed Servo Motor |
1KW |
1KW |
Han's Laser |
|
Material Feeding Servo Motor |
1KW |
1KW |
Han's Laser |
|
Precision Reducer |
|
|
Wanxin Precision |
|
Three-in-One Air Filter, Regulator, and Lubricator |
AIRTAC |
GFC3000 | AirTAC (Taiwan) |
|
AC Contactor |
1C1D09 |
Schneider |
|
|
Thermal Overload Relay |
CB206 |
Schneider |
|
|
Relay |
RY4S-U 24V |
24V 5A |
Schneider |
|
Sawing Motor |
Spindle Motor |
7.5KW |
Hongfeng |
|
Lead Screw |
3210 |
3210 |
TBI (Taiwan) |
|
Linear Guide |
25 |
25 |
Hiwin/AirTAC (Taiwan) |
|
Tool Cooling |
Micro-Cooling |
Micro-Cooling |
Hongfeng |
Processing capacity
This CNC aluminum cutting equipment is suitable for cutting various curtain wall materials, door and window profiles, heat sink profiles, industrial profiles, and aluminum templates.
Standard Configuration
1 × Annealed and aged 600 series machine integral base
1 × Material support frame 3000mm
1 × Air filtration system
4 × Large-range vertical material pressing devices
4 × Horizontal material pressing devices
1 × Mist cooling system
1 × Enclosed protective cover
1 × Ф455 TCT carbide-tipped saw blade
1 × Operating manual
1 × Chip collection system 3.0KW
