Acrylic Wood Board Big Laser Cutting Machine for Engraving Craft Pattern
Large non-metallic laser cutting machine for wood and acrylic

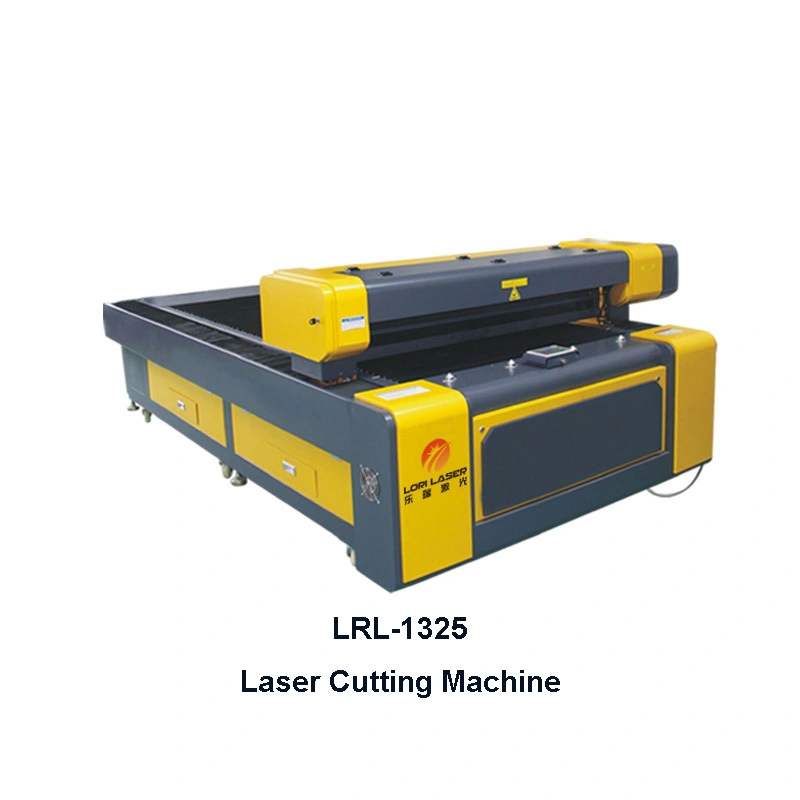

- LRL-1325 Laser Cutting Machine
- The big Laser cutting machine uses CO2 laser cutting head with fine spot. It can cut accurately and quickly according to any pattern to meet the processing of mass production of large goods.
- The acrylic wood laser cutting machine is high operability. Its control system operation is easy to learn, good compatibility, processing flexibility, any angle and any shape can be cutting.
- Neat and beautiful cutting. Cutting a variety of materials are flat, no burrs, no drawing
- Lori big laser cutting machines has low cost, low energy consumption, high photoelectricity conversion rate.
- High cutting power, stable cutting process, low noise during operation.
- This wood laser cutting machine for crafts has a wide range of uses, can be used for leather, leather, wood board, acrylic board and other non-metallic materials cutting.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine information
- The wood laser cutting machine for crafts use lighghtweight aluminum motion system, good rigidity and good dynamic performance.
- The entire use of high-quality sheet metal, thick body, long time use without deformation.
- Fine control of the production process to ensure the consistency of production quality.
- Large window design for this big laser cutting machine, you can view the work situation at any time.Processing track and coordinate points, processing progress real-time display.
- This acrylic laser cutting machine has a working time preview/power off to continue engraving, accurate to the millisecond level
machine Parameters
Our laser cutting equipment has excellent material selection and is widely used. We can provide high quality laser cutting equipment and services at more competitive prices. The following is the technical parameters of our non-metal laser cutting equipment such as acrylic wood
| Machine Model | LRL-1325 Laser Cutting Machine
|
Laser power | 60-600W |
| Cutting speed | 0-6400mm/s | Working area | 1300*2500mm |
| Engraving speed | 0-1500(mm/s) | Cutting thickness | 0-30(mm) depending on the material |
| Smaller line width | 1*1mm | Positional accuracy | ±0.5mm |
| Support format | PLT\GIF\JPG\DXF\BMP\TGA\DWG\PCX\TIFF | Engraving speed | 1500m/s |
| Cooling mode | water cooling | Power supply | AC110V/220V 50-60HZ |
| Total power | <3600W | Operation temperature | 0-40℃ |
| Working humidity | 5-95% | Machine size | 1880*3560*1160mm |
| Machine weight | 680KG | Transmission mode | Taiwan linear guide |
| Operation humidity | Humidity 10%-90% (no condensate) | Control system | DSP control system |
Our Laser cutting machine advantage
Large format materials cutting
Lori Large laser cutting machine is suitable for large format materials and can cut arbitrary curves quickly.
Power, frequency, speed follow function
Our laser cutting machine has power, frequency, speed follow function, effectively reduce cutting Angle burrs. The energy following technique makes the acute Angle cutting technique more effective
High performance motherboard
Our wood laser cutting machine has high-performance motherboard, anti-interference, more adequate data output, break continuous carving, slope carving.
High efficiency
This large laser cutting machine can optimize the software design path according to the need to shorten the processing time and increase the speed.
machine dtails
Air pump
Blow the smoke and dust generated during cutting to the exhaust area under the machine to facilitate the discharge of smoke and dust.
Laser Tube
Adopting glass fiber reinforced plastic tube with nano-catalytic technology for more stable performance.
Laser head
Choose six balanced linear guide, with high hardness, corrosion resistance, superior vertical performance.The laser head is smooth, high speed, no jitter, stable cutting process.
Blower Shell
Blower shell is made of aluminum, good heat dissipation performance fire and corrosion resistance, better adsorption of materials, so that the material is flat to suck away the smoke.
Constant temperature chiller
Brand water tank cooling system water flow cooling stability, long service life, can better protect the laser tube from damage.
sample pictures
Widely used in various industries, such as printing block, clothing, leather goods, furniture, toys, advertising, decoration, architectural decoration. cutting fabric, clothes, shoes, leather, acrylic, PVC, wood and so on. Precision cutting, flat surface.
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size of the material ,we can choose the best laser machine for you . You can also send us the products drawing ,we will custom the most suitable laser machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
