150W Non-metal Wood Four Laser Cutting Machine

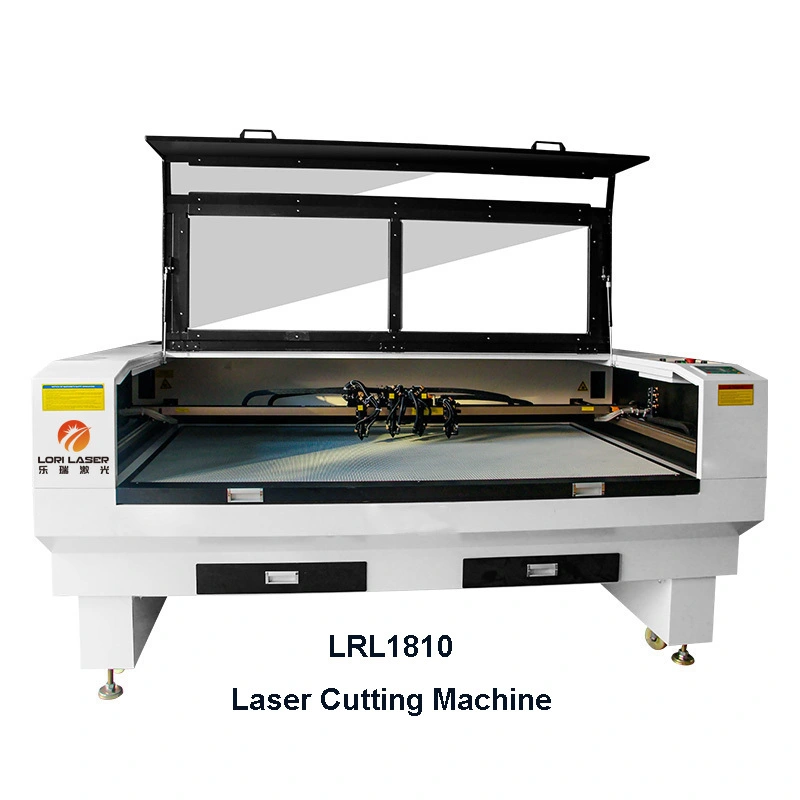

- LRL-1810 Four Head Laser Cutting Machine
- Precise cutting. The incision is smooth, no yellow, no raw edge, no need for secondary processing.
- The non-metal laser cutting machines have lightweight aluminum motion system, good rigidity, good dynamic performance.
- The wood cutting machines adopt high quality sheet metal, thick body, 2 times heavier than the peer.
- Processing track and coordinate points, processing progress real-time display.
- The laser cuttting machinery time preview/power off to continue carving function is accurate to the millisecond level.
- Large window design allows you to view work at any time.
- The the four laser heads of the automatic laser cutting machine can be automatically moved to a specific position, after the nested layout of the pattern is imported into the intelligent laser control software.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
machine parts
machine Parameters
| Machine Model | LRL-1080 Laser Cutting Machine | Laser power | 80W-300W |
| Cutting Speed | 0-36000mm/s | Graphic type | BMP,GIF,JPEG |
| Supported formats | PLT, BMP, JPG | Positional accuracy | +0.1mm |
| Air speed | 1000mm/s | Machine power | <5000W |
| Smaller line width | letter 1*1mm | Working voltage | AC110/220V |
| Machine weight | 500KG | Machine operating temperature | 0-45% ° C |
| Machine operating temperature | 5-95% (no condensation) | Control speed | DSP control system |
| Cutting range | 1800*1000mm | Transmission mode | internal and external ball high-speed guideway |
| Cutting thickness | 0-30mm | Machine size | 2380*1780*1120mm |
machine Advantages
Air pump
Cut the smoke produced when blowing to the machine under the air exhaust area to facilitate the discharge of smoke and dust.
Laser Tube
The laser tube is made of glass fiber reinforced plastic tube, which is stable in use, and the performance of nano-catalytic technology is more stable.
Laser Head
Laser head selection of imported six balanced linear guide with high hardness, corrosion resistance, superior vertical performance. The laser head is smooth, high speed, no jitter.
Blower Shell
Blower shell is made of aluminum, good heat dissipation performance fire and corrosion resistance, better adsorption material, so that the material is flat to suck away the smoke.
Constant Water Cooler
Brand water tank cooling system water cooling stability, long service life can better protect the CW-5200 laser tube from damage.
sample pictures
Widely used in various industries, cutting fabric, clothes, shoes, leather, acrylic, PVC, wood, paper, EVA sponge and so on. Precision cutting, flat surface.
Frequently Asked Questions
1
Q: What is your minimum order quantity and warranty?
A: Moq is one set, and warranty is one year.
2
Q: How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size ,we can choose the best machine for you . You can also send us the products drawing ,we will custom the most suitable machines for you.
3
Q: What's the payment terms?
A: T/T, L/C /Paypal.
